XT45 Series

Before You Begin


For install verification and device registration, visit https://verifygps.gpsinsight.com and bookmark the page.

Installation Overview

The following steps provide an overview of the installation process:

1. Installation Preparation
2. Device Mounting
3. Harness Installation
   • Conventional Hardwire
   • Small Battery
   • Motion
4. Verification and Registration

Installation Steps

1. 1. Installation Preparation.

   1. Record the 9-digit serial number on your registration card.



   2. Identify a mounting location, ideally level and on top of the asset.
   3. Inspect underneath the potential mounting location to confirm nothing will be damaged during mounting.

2. 2. Device Mounting.

   1. Place the device on the asset, mark mounting holes, drill using 1/4″ (7mm) bit, insert Well Nuts and screw the device to the asset.

   2. If power cable needs to breach asset housing, utilize the provided grommet and butt connectors.


   A cable breach point should be located where it’s least susceptible to weather; the top of the asset is not recommended.

3. 3. Harness Installation.

   • Conventional Hardwire
   • Small Battery
   • Motion

   Identify an asset wire which supplies between 12 VDC (+) and 24 VDC (+) when the key is in the Ignition On position and 0 VDC (+) when the key is in the Off and Accessory positions; this will be the device’s White wire Switch power source. Identify an asset wire that supplies between 12 VDC (+) and 24 VDC (+) with the vehicle On, Off, and keys removed; this will be the device’s Red wire Constant power source.

   1. Cut the asset wire identified, remove ½” of insulation from each end, and fray wire strands on one side.
   2. Remove ½” of insulation from the device White wire, fray, and then twist together with frayed vehicle circuit wire.
   3. Insert the single-vehicle wire into the Blue side of the connector and then the two wires into the Yellow side and crimp each.
   4. Heat the connector to release adhesive creating a weatherproof seal before completed with a cable tie stress loop.


   Identify an asset wire which supplies between 12-24 VDC (+) when the key is in the Ignition On position, but 0 VDC (+) when the key is in the Off or Accessory positions; this wire will be the power source for both device Red and White wires.

   1. Cut the asset wire identified, remove ½” of insulation from each end, and fray wire strands on one side.
   2. Remove ½” of insulation from the device Red and White wires, fray, and then twist together with frayed vehicle circuit wire.
   3. Insert the single-vehicle wire into the Blue side of the connector and then three wires into the Yellow side and crimp each.
   4. Heat the connector to release adhesive creating a weatherproof seal before completed with a cable tie stress loop.


   Identify an asset wire that supplies between 12 VDC (+) and 24 VDC (+) with the vehicle On, Off, and keys removed; this will be the device’s Red wire Constant power source.

   1. Cut the asset wire identified, remove ½” of insulation from each end, and fray wire strands on one side.
   2. Remove ½” of insulation from the device Red wire, fray, and then twist together with frayed vehicle circuit wire.
   3. Insert the single-vehicle wire into the Blue side of the connector and then the two wires into the Yellow side and crimp each.
   4. Heat the connector to release adhesive creating a weatherproof seal before completed with a cable tie stress loop.





4. 4. Ground Connection.


   Remove 1/2“ (1 cm) of insulation from the Black wire, crimp the ring terminal to the wire, heat connector and then screw ring terminal to the chassis.



5. 5. Verification and Registration.

   1. Start the engine and run for 5 minutes; to pass verification for the ‘Small Battery’ installation type, the internal battery must have a charge.
   2. Confirm cellular and GPS connection: upon the device receiving power, device lights will begin to blink as it searches for signal. A solid blue light indicates a cellular network connection and a solid green light indicates a GPS connection.

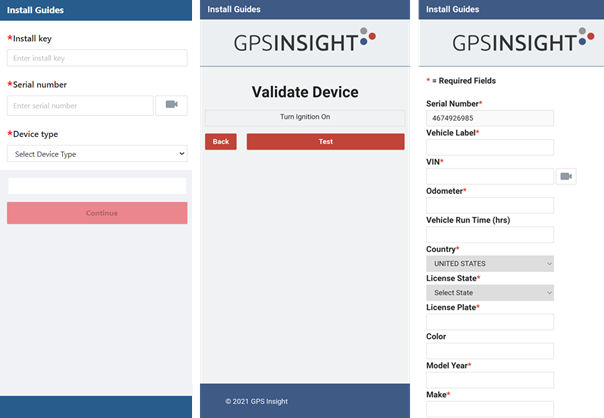

   3. Open the web app: https://verifygps.gpsinsight.com/ on your computer or smartphone.
      – Enter your Install Key.
      – Select ‘Device Type’ according to the wiring option installed and follow the instructions.

   4. After verification and registration, using provided cable ties, place a cable tie over each fuse holder, secure any loose sections of cable, reassemble removed panels and give the Registration Card to your GPS administrator.
