Using the Vehicle Card

Vehicle Card

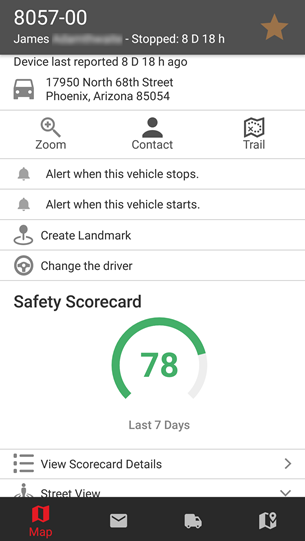

When you tap on a vehicle from the map, the Vehicle Card appears, which shows you the Vehicle ID or name, driver (if associated/assigned), duration of vehicle status, last reported time of ignition status, and address of last reported location.

Additional options on the vehicle card include the following:

  • Zooming in on current location
  • Starring the vehicle
  • Contacting the driver/vehicle
  • Viewing the vehicle trail
  • Activating Ignition On/Off alerts
  • Creating landmark from vehicle location
  • Assigning/changing the driver to the vehicle
  • Displaying Street View (Preview and Full available)
  • Viewing vehicle trip history (Recent and Complete available)
  • Viewing vehicle details (Includes any and all details specific to the vehicle as configured in the Portal such as odometer, runtime, and more)

You may need to scroll up to see the complete vehicle card.

Swipe up or tap to view the card in full screen.

Swipe down or tap to hide the vehicle card.




Activating Ignition On/Off Alerts

Receive notifications when ignition on/off events occur by activating Ignition On/Off Alerts. Alerts are sent from the Manager App to any and all device(s) for which you are currently signed into the App. All alerts activated in the App are reflected in the Portal and can be managed like any alerts set up in the Portal.

The Manager App follows alert permissions configured in the Portal (i.e., only users who have permission to create alerts will be able to enable the alert from the App).

To activate the Ignition On/Off Alert:

  1. Tap Alert when this vehicle stops or Alert when this vehicle starts once to activate the alert for one-time notification.

The Alert icon appears in green and the text in green confirms that the alert will be sent once.

  1. Tap Alert when this vehicle stops or Alert when this vehicle starts again to activate the alert to send a notification every time the event occurs.

The Alert icon appears in blue and the text in blue confirms the alert will be sent every time the event occurs.

To disable the Ignition Off Alert:

  1. Tap Alert when this vehicle stops or Alert when this vehicle starts.

The icon and text revert to black and the Alert is disabled.

If you selected to receive the notification once, you are required to tap again to change the notification to send every time, then tap once more to disable the alert.

Creating a Landmark

The Manager App allows you to create a landmark from the vehicle card. The landmark you create will be added to the landmark group that you have permission to manage and is reflected in the Portal.

If you are creating a landmark from the vehicle card, the landmark location will match the location of the vehicle at the time you create the landmark. The landmark shape and size defaults to a 750 ft. circle.

To create a landmark:

  1. From the vehicle card, tap Create Landmark.
  2. A pop-up window appears prompting you to enter a name for the landmark you are creating.

  3. Enter the name you would like to assign to the landmark.
  4. Tap CREATE.
  5. The landmark is created and displayed on the Map.

    You can view the Landmark card (see Landmark Card for more information below) by tapping on the landmark.

Assigning/Changing a Driver

The Manager App allows you to assign or re-assign a driver to a vehicle. If a driver is assigned to a vehicle, you can then search for the driver in the app. You may also change a driver assigned to a vehicle. Drivers must be previously added to the Portal to appear in the list of available drivers on the app.

This feature is available to Pro and Enterprise customers only.

To assign a driver:

  1. From the vehicle card, tap Assign a Driver.
  2. A list of available drivers appears.

  3. Tap on the name of the driver you would like to assign to the vehicle.
  4. The driver is now assigned.

To change a driver:

  1. From the vehicle card, tap Change the driver.
  2. A list of available drivers appears.

  3. Tap on the name of the driver you would like to assign to the vehicle.
  4. The driver assigned is now changed.

Displaying Street View in Full Screen

You may display the Street View in interactive full screen to visually explore the surroundings of a selected vehicle.

To Display Street View in Full Screen:

  1. From the vehicle card, tap Show full screen Street View.
  2. A new page appears displaying the Street View.

  3. To interact with the Street View, drag your finger on the screen or tap the white arrows to move the view up/down the street. To see a wider view and change to landscape mode, turn your device sideways. To zoom in, pinch open on the screen.
  4. To return to the vehicle card, tap the back arrow at the top-left corner of the page.

Starring Vehicles

Starring vehicles puts them in a temporary starred “group,” which allows you to apply quick filter and follow actions. Filtering by vehicle allows you to temporarily hide all other vehicles. Following a vehicle continuously centers the map around the selected vehicle (or vehicle group) as its location(s) update(s).

Vehicles can be starred in the app wherever there is an empty star displayed next to the vehicle name.

To filter the map by starred vehicle(s):

  1. From the map, tap the empty star next to the vehicle(s) that you want to follow.

The star becomes solid.

  1. Tap the Menu icon ().
  2. Tap Filter Starred.

The map automatically hides all other vehicles. To turn off filtering, tap the Filter Starred menu option again.



To follow one or more starred vehicles:

  1. From the map, tap the empty star next to the vehicle(s) that you want to follow.

The star becomes solid.

  1. Tap the Menu icon ().
  2. Tap Follow Starred.

The map automatically centers around the starred vehicle(s) if it is not already in view. The map continues to dynamically center as the starred vehicle(s) update their location. To turn off following, tap the Follow Starred menu option again.

Getting Directions

You can get directions to/from a vehicle’s location using your mobile device’s native mapping app or alternative mapping app of your choosing from the following prompt:

The mapping app allows you to choose a destination based on your mobile device’s location, a place, or an address. The GPS Insight Manager app does not include options to dispatch or share the directions to another vehicle or driver.

To get directions to a vehicle’s location:

  1. From the vehicle card, tap the last reported address.

A prompt displays for you to choose your preferred mapping app.

  1. Set the From destination using your location (default if location services are enabled), a place, or an address. Reverse the To/From as needed.
  2. Tap the preferred route (if applicable).
  3. Tap Start.

  1. When the route is complete, tap the back button ()to return to the GPS Insight Manager app.



Viewing Vehicle History

You may need to swipe up to view vehicle history.

Details including Trip Start, Duration, Average Speed, Distance and a map view from the vehicle’s most recent trip within the past three days is displayed under Recent Vehicle History.

The map view includes trip start () and stop () indicators.

History detail provides insight into a vehicle’s individual trip activity (ignition on to ignition off) and stop duration between trips. Historical trails provide a snapshot of all vehicle activity (one or multiple) for the last hour, represented in a single trail. History trails do not distinguish between a vehicle’s individual trip activity.

To view history detail on the map:

  1. From the vehicle card, tap Trip History.

The past five days of history detail appears. (You can load prior trips as needed.) Each trip activity includes total miles, average speed, start time/location (Green), stop time/location (Red), and idle events (Blue), if any.

  1. Tap a trip to view trip activity on a map.
  2. Tap a history point to view details about that point.

  1. Tap Back to return to the history detail.
  2. Tap Back to return to the vehicle card.



To view history trails on the map (one vehicle):

  1. From the vehicle card, tap Trail.

If the vehicle logged movement within the last hour, the vehicle’s cumulative activity is represented by a green trail.

To turn off the history trail for a vehicle, tap Trail from the vehicle card again.



To view history trails on the map (multiple vehicles):

  1. Tap the Menu icon ().
  2. Tap Trail All Vehicles.

If the selected vehicles on the map have logged movement within the last hour, each vehicle’s cumulative activity is represented by a colored trail. If you have selected to trail a vehicle from the vehicle card, the activity will be represented by a light green trail.

If you have a large number of vehicles on the map, you may want to filter the map by a particular vehicle group (or individually starred) before turning on all history trails. If you do not see any history trails on the map, the selected vehicles have not updated their locations in the last hour.

To turn off all vehicle trails, tap the Menu icon, and tap Trail All Vehicles again.


Communicating with a Driver

The Manager app allows you to call and send or receive SMS messages to/from a a vehicle or driver. For SMS messages, the driver or vehicle must have an SMS number set under the driver’s or vehicle’s profile set in the portal.

To call a driver:

  1. From the vehicle card, tap Contact.

A window with contact information for the driver appears.

  1. Tap Call button.

When you complete or cancel the call, you’ll return to the GPS Insight Manager app.



To send an SMS message to a driver:

  1. From the vehicle card, tap Contact.

A window with contact information for the driver appears.

  1. Type your new message.

  1. Tap Send, and then tap Back to return to the vehicle card.
